SOLIDSVAC- SOLIDS PUMPING EQUIPMENT Innovative - Versatile - Energy Efficient
Solidsvac manufacture a range of 100% air operated, vacuum loading solids pumps and solids handling equipment. IECEx Zone 0 & 1 Certified.
Compressed air enables Solidsvac solids pumping equipment to move high solids content sludges and slurries over significant distances. A vast range of materials from oil sludge to waste concrete, sewage and mine tailings can be moved around 1000 metres. Generally, particle size can be up-to 70% of the hose diameter. The patented design uses compressed air to operate the units and generate very strong vacuum combined with high airflows.
A vacuum of up to 26"Hg draws material into a 316 SS vessel via a 50, 75 or 100mm hose of up to 50+ m in length. Compressed air then forces the material into the convey hose or piping. The vessel itself contains no internal parts resulting in zero wear. This allows for a Solidsvac to also capture and transfer many dry medias from production spillage to silo transfer.
These features make Solidsvac solids pumps an invaluable means of dealing with day to day, problematic or even emergency operations. Solidsvac solids pumping equipment is supported global by an extensive, hands-on experienced network of Distributor and Agents.
SV40, SV50 & SV60-SP Solids Pumping Equipment that delivers up to 15,000 l/h+ (3,960 gal/h)
- The SV40 Air-Fox is available in 50mm (2") and 63mm (21/2") Suction and 50mm (2") and 75mm (3") Discharge
- The SV50 Rig-Vac is supplied in 50mm (2") Suction and 50mm (2") and 75mm (3") Discharge
- The SV60 is available in 75mm (3") Suction and Discharge.
- Fully Automatic - Manual Controls Optional
- 100% Air Operated Robust 316 Construction
- Highly Mobile 120Kg (264Lb)
- IECEx Zone 0 & 1 Rated
- Available in 80/100/130 & 180cfm configurations which deliver a super 16-24"Hg Vacuum range.
- All Solidsvac solids pumping equipment is capable of moving high solids content sludges and slurries with performance to meet both budget and application
- See also https://solidsvac.com/solidsvac-solids-handling-innovation/
SV70 & SV100-SPDK Heavy Duty Solids Pump delivering up to 21,000+ l/h+ (5,550gal/h) Serious Solids Pumping Muscle
- The SV70-SPDK is available in 75mm (3") Suction and Discharge
- The SV100-SPDK is available in 100mm (4") Suction and Discharge
- These Extra Heavy-Duty Sludge & Slurry Pumps can accommodate solids up to 70% of the Suction inlet.
- Fully Automatic - Manual Controls Optional
- 100% Air Operated Robust 316 Construction
- Highly Mobile 210Kg (462Lb)
- IECEx Zone 0 & 1 Rated
- Available in 100/130/180 and 230CFM that deliver a super aggressive 23-25"Hg Vacuum
CONTINUOUS VACUUM LOADING SV150-CVCD "MEAN MACHINE" Use 50% Less Compressed Air
The "continuous" function of the CVCD Solids Handling Pump will save you up to 50% on compressed air usage whilst pumping 35-50 m3/h of high solids content sludges & slurries. This can be over both significant distance and high heads.
The compact SV150 is 100% air operated and comes standard with 316 SS vessels. These ULTRA-EFFICIENT, LOW WEAR Solids Pumps deliver 25"Hg of super strong Vacuum.
With no internal workings and low maintenance costs, the IECEx Zone 0 & 1 rated the SV150-CVCD vacuum loading solids handling pump comes fully enclosed with certified lifting points. All Solidsvac solids pumping equipment comes ready to work 24/7.
*DNV2.7.1 CERTIFIED LIFTING AVAILABLE ON REQUEST
* DIRECT AUGER GRAVITY FEED HOPPER AVAILABLE
The SV200-SPDK will move 25-35,000 L/H of Flowable Entrained Solids
Our SV200-SPDK is a 100mm (4") solids handling pump and is ideal for the rapid recovery and transfer of heavy sludges and slurries from tank farms, tailings dams and effluent ponds. Working equally as well on STP digesters and general high volume and high lift applications.
Highly mobile the versatile one-person operation is fully automatic with manual controls optional. The SV200 is IECEx Zone 0 & 1 Certified and available in a range of Jet Pack configurations from 180 to 380cfm to suit YOUR application.
The SV200 solids handling pump is 100% pneumatically operated and features 316 vessel and valves as standard along with single lever manual and automatic controls.
SV-VAC-PACK DELIVERS VAC-TRUCK PERFORMANCE AT A FRACTION OF THE COST
Solidsvac VAC-PACK generates a source of continuous super high vacuum/airflow. When coupled to any vacuum rated skip, tank or hopper, it provides a highly economical means of capturing and transporting via pneumatic conveying, a wide range of materials.
The VAC-PACK is capable of 40m vertical lifts and has no moving or wearing parts. This ensures your vacuum unit stays on the job 24/7 without the costly need to halt work, and travel to empty.
- Available in 230/300/600/900 & 1200CFM
- IECEx Zone 0 & 1 Certified
Solidsvac Product Testimonials & Performance Endorsements
Hydrotec Industrial Services
“Our Solidsvac fleet includes CVCD pumps which are a crucial component of our tank
cleaning operations. With over a dozen Solidsvac units in our fleet, we highly
recommend the equipment on performance and the company for their professionalism
and support”
![NILAM PROTECH FINAL[3298]-2](https://solidsvac.com/wp-content/uploads/2025/08/Logo-Nilam-Protech.jpg){kind=logo}
Nilam Group
The Nilam Group operate multiple SV70's along with both Solidsvac SV150 and SV440-CVCD solids pumps. These are exceptionally reliable, handling heavy slurries and solids without clogging or breakdowns.
100% pneumatic and automatic cycling makes them easy to operate with minimal maintenance. We have now been using Solidsvac solids handling equipment for over 12 years.
Prime Fluid Management
“We operate a number Solidsvac pumps in our rental fleet and would highly recommend the
performance and reliability of this equipment. The capabilities of the CVCD units are
certainly impressive”
Civmec Engineering
"Our client was very happy and impressed with the Solidsvac's capabilities. The job was completed safely and in record time"
Pengerang Refining Company Sdn Bhd (PRefChem)
We have recently experienced the Solidsvac pump product in our operations and pleased to share that it has performed well in handling our sludge applications.
A Difficult Operation
“I would like to thank Solidsvac SV70 pumps for their excellent performance and the important work they carried out throughout the operation. Congratulations to everyone involved for the commitment and teamwork demonstrated”.
G-Mech Mining Services
G-Mech have been a Solidsvac pump distributor for over 12 years and we operate several in our rental fleet including the SV10, SV40, SV70 and SV150-CVCD units. The IECEx Zone 0 & 1 Certification is crucial to our clients in the coal industry, and we have always been impressed by the quality of products and the professional service Solidsvac provide.
The Initiates Group
The Solidsvac SV Vac-Pack performed extraordinarily well on the Shell Bonga FPSO. The equipment was positioned approximately 15 metres from the manhole and was able to vacuum from an actual depth of 35 metres without any issues. TIG use and recommend Solidsvac equipment.
Phillips 66 - Bayway Refinery
"We have an SV20 and SV70 in our fleet and are impressed at their reliability and performance. A handy asset for our shutdown operations"
South32
"The mine operates over twenty Solidsvac pumps throughout the underground across a
wide range of duties over the past several years. We have been very pleased with both their
performance, and the product support services Solidsvac provide"
Tuffchem Environmental Services
"Our Solidsvac SV200 works very well in our naphtha tank cleaning projects as it speeds up the slurry transfer. Thanks for the support and we certainly like and recommend this equipment"
BHP - Kwinana Nickel Refinery
The SV150 unit is working very well. We are close to finishing the job removing crystalline sludge from the current pond. The next pond is significantly larger so when we come to do the next pond, we will look to go to the bigger SV440 or multiple SV150's.
Tiger Tanks Trinidad
“The company operates two SV150-CVCD pumps and some SV70’s and the team are
very happy with the easy operation and low maintenance. The continuous vacuum
works very efficiently and provides us savings"
Contract Resources
"The Solidsvac team provides an awesome equipment, and we are always appreciative for their prompt service. No matter where or when they always pick up the phone and deliver"
SOLIDS PUMPS PRODUCT BLOGS
Solids Pumps product blogs provide general information on equipment employed on various applications globally. Please contact Solidsvac for specific technical advice on a model or unit's suitability for your application.
Precision Pumps Distribute Solidsvac in South Africa
Solidsvac Self Loading Tanker SV6000-Max Vac
Solidsvac Removes Ore Sludge from process sumps in WA
Solidsvac Desludge Tailings Dams with the SV440-CVCD
Provide Onsite Training Globally

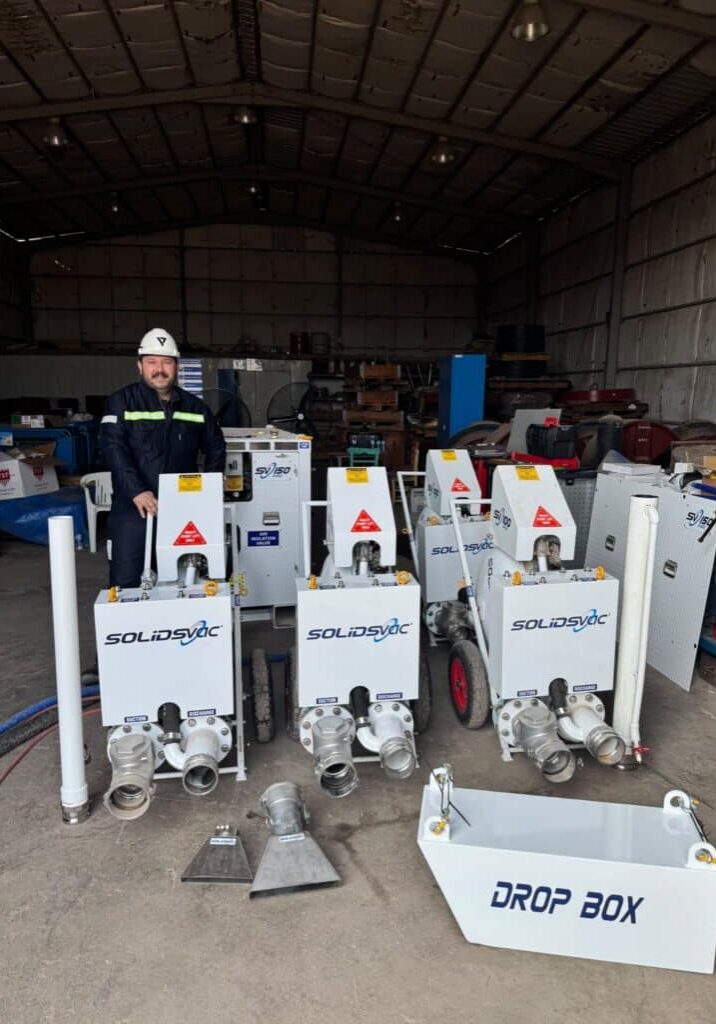

Safe Solids Pumping Operations

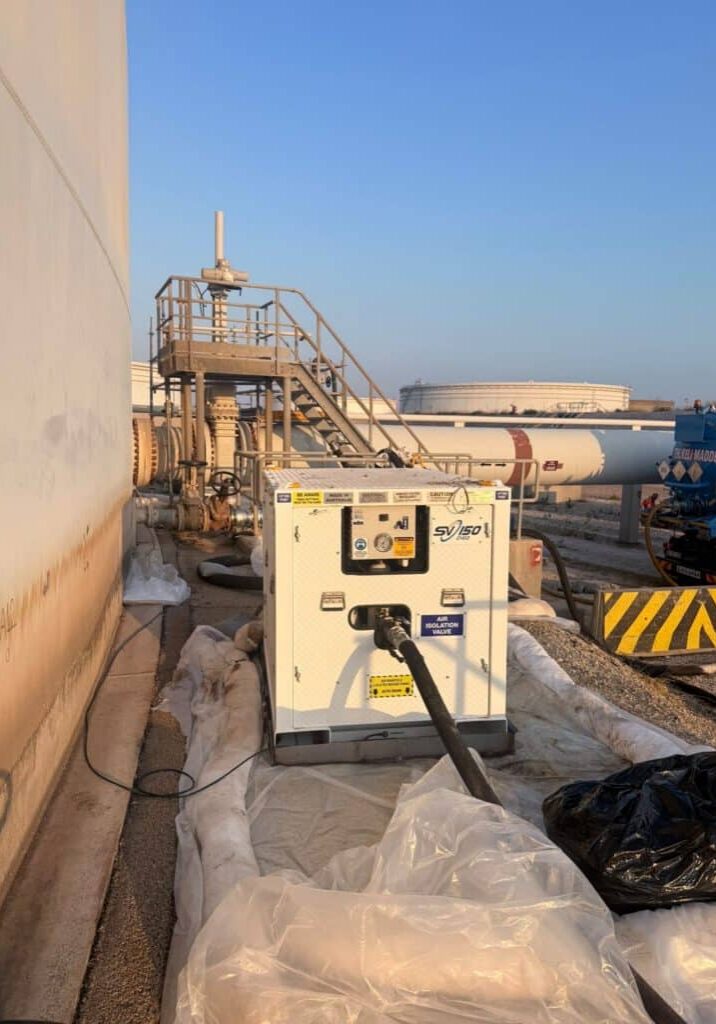

Pumping Crude Oil Safely
Solidsvac Pumping in Japan expand their co-operation
The SV200 Pumps Drill Cuttings in Guyana

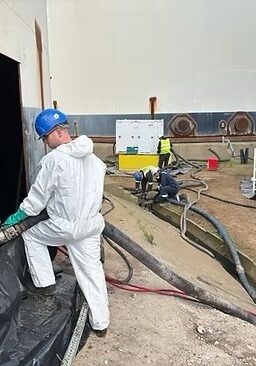

Hydrotec UK Tank Desludge

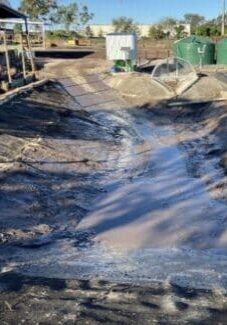

Turkey Nest Desludge SV100

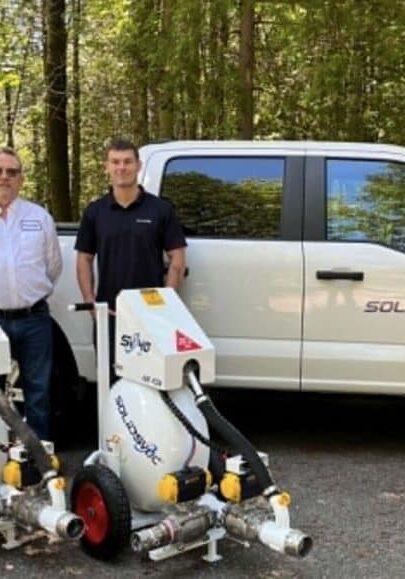

SV40 Solids Pumps Canada

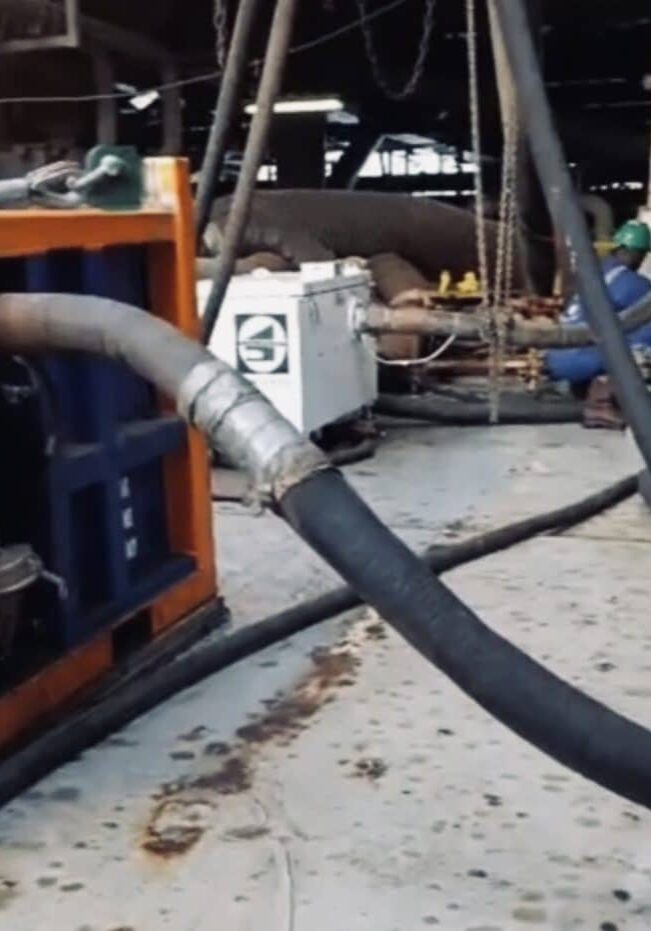

Solidsvac 35mtr Vertical Lift
FPSO Tank Cleaning Vac-Pack

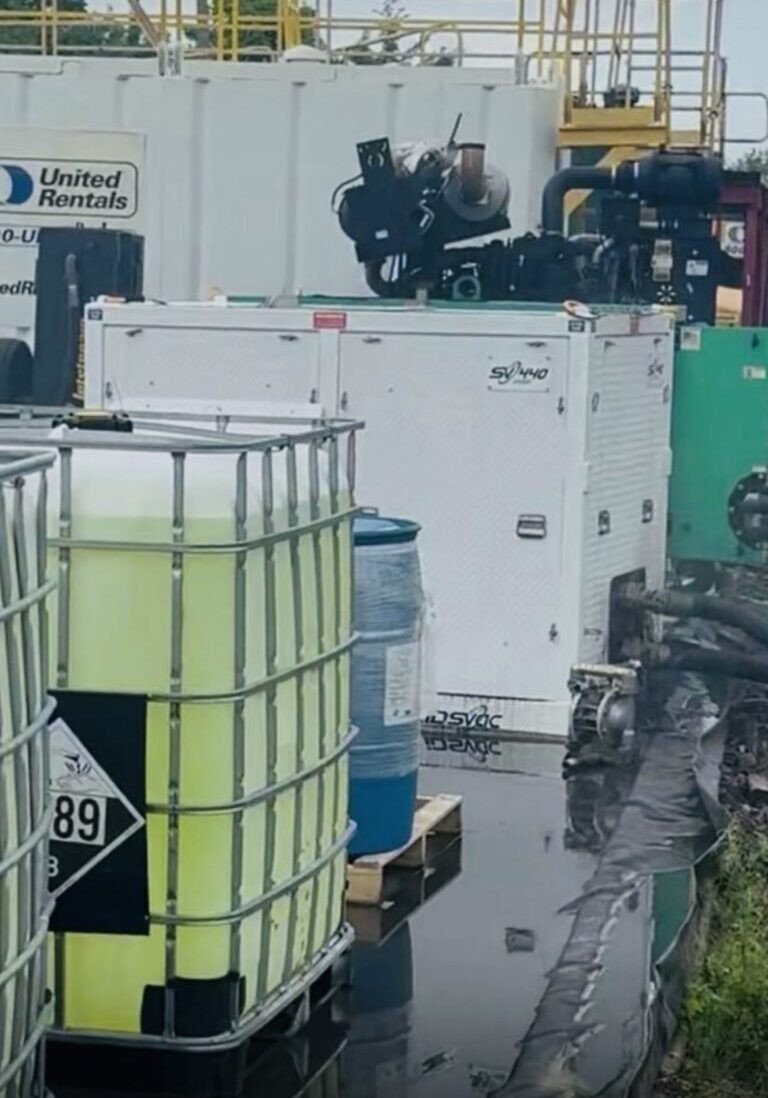

Pumping Frac Sand SV440
Solidsvac Dry Vacuum Unit

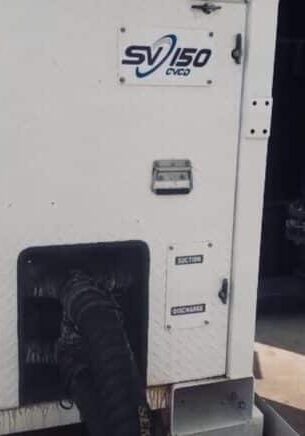

SV150 Pumping Brewery Sludge
Robotic Tank Cleaning Solidsvac Reduces Risks & Lowers Costs
Solidsvac Bore Hole Pumps use just 10cfm on Discharge

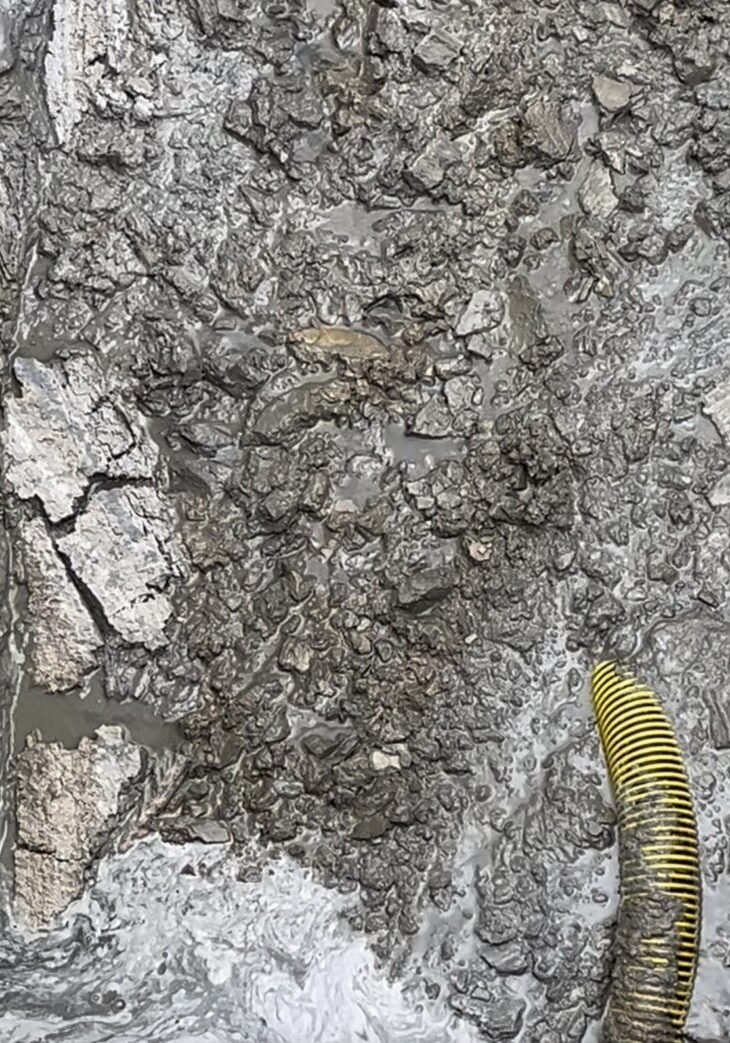

Desilt Settling Ponds Lagoons
SV40 Vacuum Loads Grease

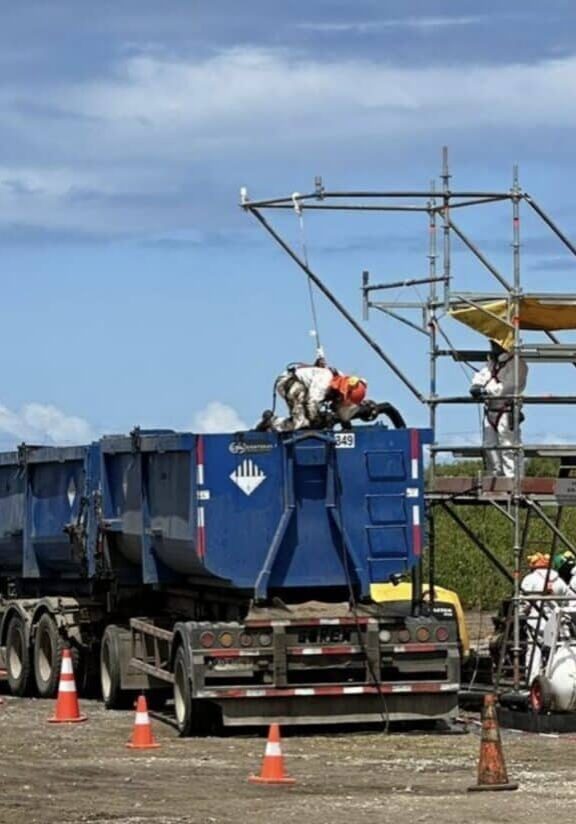

Pumping Tank Bottom Sludge
Solidsvac SV70 Versatility Offshore

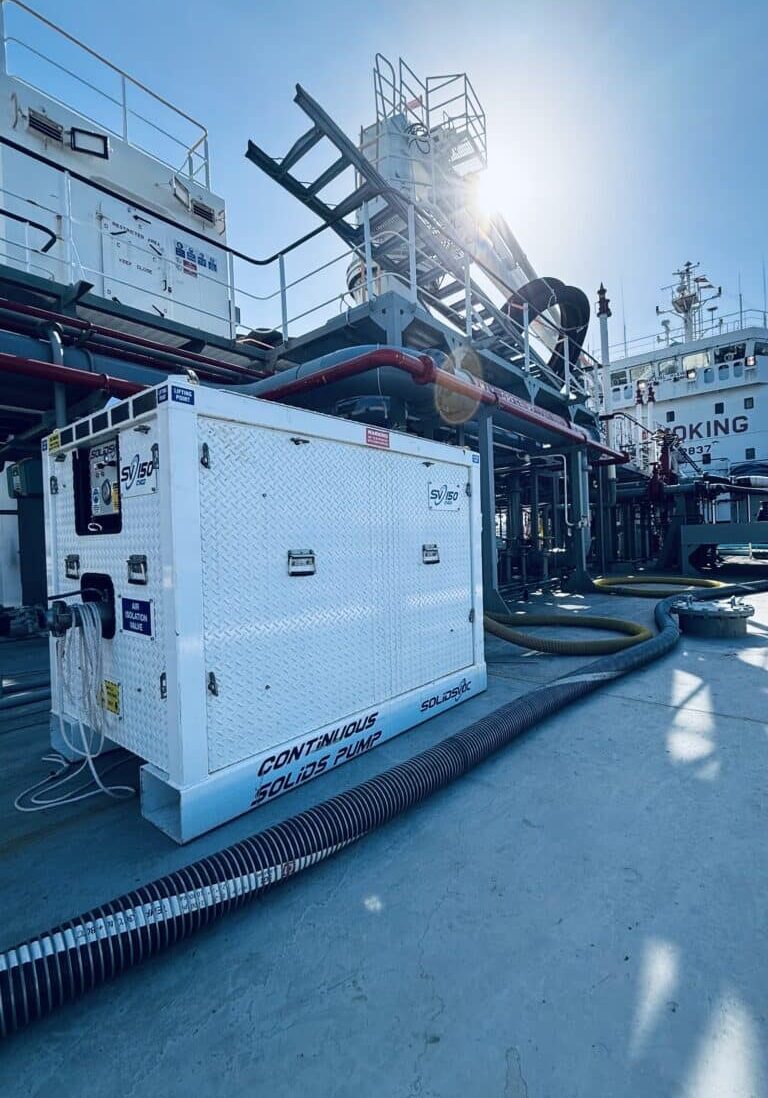

Solidsvac SV150 Pumping Crude
SV70 Desludging Polymer Tanks

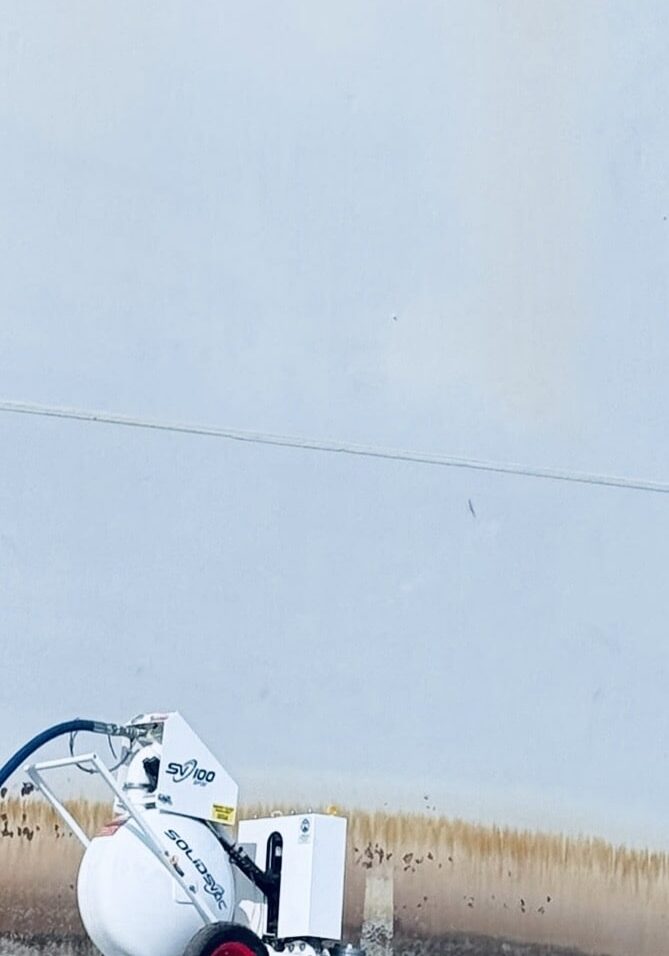

Smart Solids Pumping SV100
Solidsvac US Refinery Pumping

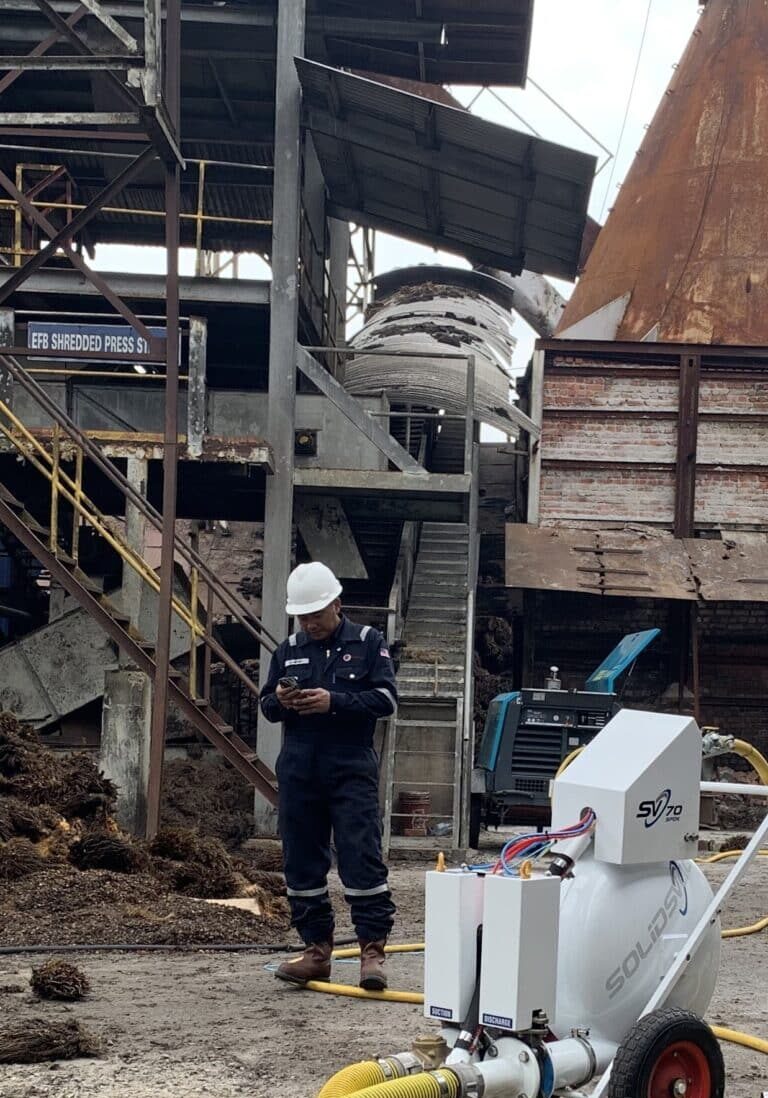

Pumping Heavy Mill Sludge
Solidsvac Compliment GFL Environmental
SV70 Canada Cold Operations
SV150 Sludge Pumping BHP

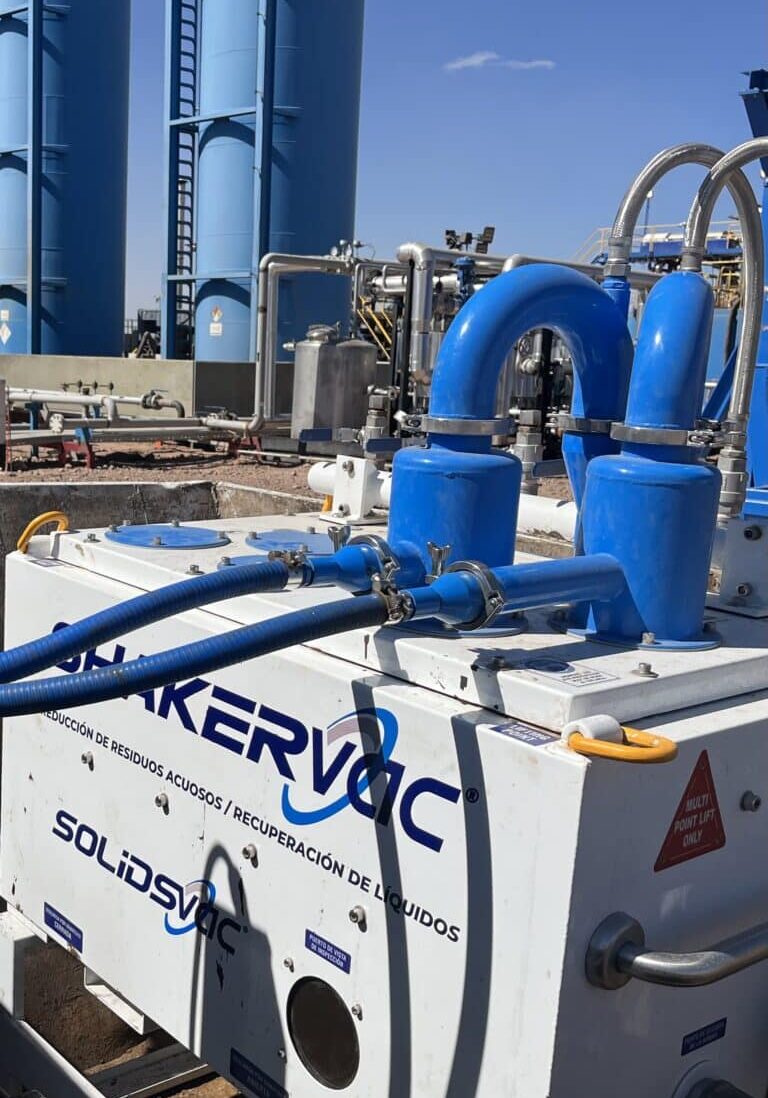

Shakervac Reduces Aqueous Waste
SV70 High Suction Lift

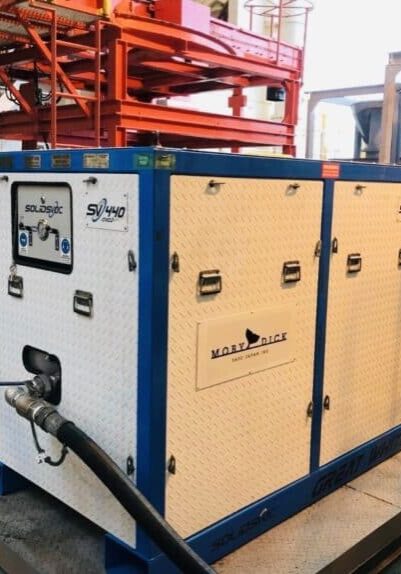

SV440 Pumps Drill Cuttings
